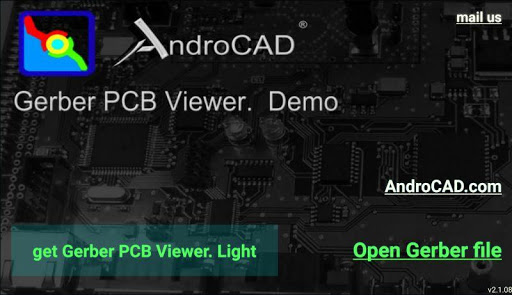

Gerber PCB Viewer. Demo version 2.1.26

for swipe Konnect 5.1

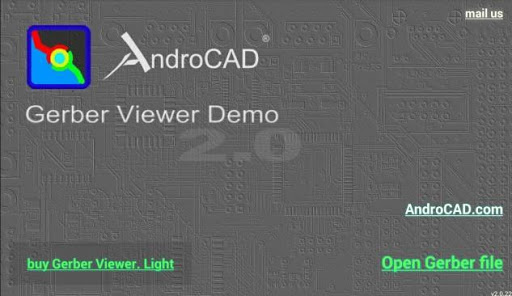

AndroCAD: Gerber Viewer. Demo version.

The "Must-Have" app for electronic engineers, pcb designers, pcb manufacturers and others, who use CAD / EDA systems.
The Gerber RS-274X format is the "de facto" standard for "CAD to CAM" data transfer in the PCB (Printed Circuit Board) industry.

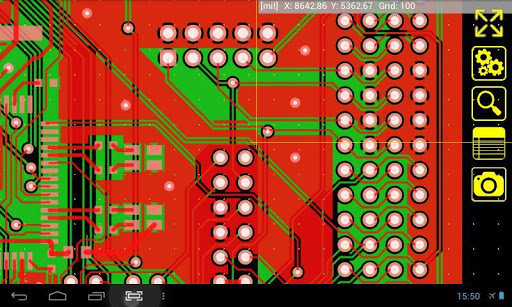

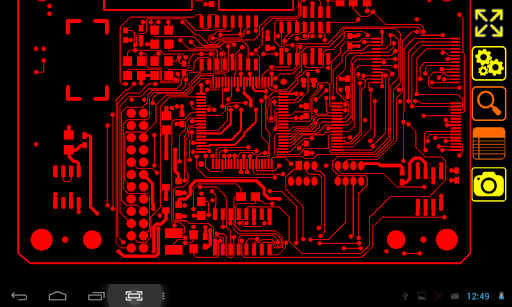

Just open your CAD, export your PCB project to the Gerber RS-274X format, and watch circuit board layouts on the screen of Android.

Gerber PCB Viewer doesn't support RS-274D (the old format) and "Excellon drill" files.

AndroCAD Gerber Viewer can open Gerber-274X files, exported from Altium Designer / Eagle / OrCAD / Mentor / Eagle / Protel / KiCad and others.

Any Gerber-274X file must contains %MO and %FS markers!

If you think you have Gerber-274X pcb file and it is not recognized by Gerber PCB Viewer, please send it to us.

Demo version has restrictions.
Maximum file size: 200Kb.
Multilayers: off.

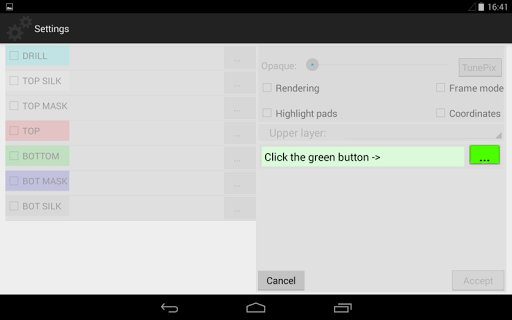

Disabled options: rendering, coordinates & grids, frame mode, unrestricted zoom.

Minimum System Requirements.
Android OS: 4.0
Display: 4.0"
Free RAM memory: 40 Mb (for Demo), up to 120 Mb (for Light/Pro).

See our site and the video on YouTube for an additional info.
